Titanium Elbow – The Ultimate Solution for High-Temperature and Corrosive Environments
An elbow is a pipe fitting that changes the flow direction of fluids or gases. Titanium elbows are available in different angles, including 45 degrees, 90 degrees, and 180 degrees. The elbow’s angle dictates how much pressure the fluid flow experiences due to the change in direction.
ASME B16.9 is the standard for manufacturing and testing butt-welded fittings. Titanium elbow that meets the ASME B16.9 standard are tested rigorously to ensure they can withstand the pressure and temperature requirements of different applications.
Titanium elbow is available in both seamless and welded construction depending on the end-use requirements. Seamless titanium elbow has a smoother surface and can withstand higher pressures than welded elbow, making it ideal for critical applications. Welded titanium elbow, on the other hand, is commonly used in low-pressure applications where cost is a significant consideration.
At TSM, we manufacture titanium elbows using various grades, Each grade has its unique properties, and we work with our clients to select the most suitable grade for their specific application.
Product Description
Titanium Grade: Gr1,Gr2, Gr5,Gr7, Gr12
Size: 45°, 90°, 180° 1/2″~48″
Standard: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B
Can be customized according to the drawing processing.
Connection: Butt Welding
Packing: Plywood Pallets/ Wooden Case Or As Per Your Specification.
Technique: Welded, Forged, Rolled, Seamless
Marks and stamp: As per client’s request.
Inspeciton: X-ray detection(RT) Surface penetrant inspection (PT)
Note:Any oreder,Please state your request in details,Such as :Quantity,Dimension(Length,High,thickness,wideth,or fixed length),Materials,Standard etc.
Dimensions of Elbows and Returns
| Nominal Pipe size DN | O/D Bevel D | Center to End | Center to Center | Back to Faces |
| 45⁰ Elbows | 90⁰ Elbows | 180⁰ Elbows |
| B | A | P | K |
| Long Radius | Long Radius | Short Radius | Long Radius | Long Radius | Long Radius | Long Radius |
| 1/2 | 21.3 | 15.7 | 38.1 | / | 76.2 | / | 47.8 | / |
| 3/4 | 26.7 | 19.1 | 38.1 | / | 76.2 | / | 50.8 | / |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 | 76.2 | 50.8 | 55.6 | 41.1 |
| 1-1/4 | 42.2 | 25.4 | 47.8 | 31.8 | 95.3 | 63.6 | 69.9 | 52.3 |
| 1-1/2 | 48.3 | 28.4 | 57.2 | 38.1 | 114.3 | 76.2 | 82.6 | 62.0 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 | 152.4 | 101.6 | 106.4 | 51.0 |
| 2-1/2 | 70.3 | 44.5 | 95.3 | 63.5 | 190.5 | 127.0 | 131.8 | 100.1 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 | 228.6 | 152.4 | 158.8 | 120.7 |
| 3-1/2 | 101.6 | 57.2 | 133.4 | 88.9 | 266.7 | 177.8 | 184.2 | 139.7 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 | 304.8 | 203.0 | 209.6 | 158.8 |
| 5 | 141.3 | 79.2 | 190.5 | 127.0 | 381.0 | 254.0 | 261.9 | 196.9 |
| 6 | 168.3 | 95.3 | 228.6 | 152.4 | 457.2 | 304.8 | 312.7 | 236.5 |
| 8 | 219.1 | 127.0 | 304.8 | 203.2 | 609.6 | 406.4 | 414.3 | 312.7 |
| 10 | 273.1 | 158.8 | 381.0 | 254.0 | 762.0 | 508.0 | 517.7 | 390.7 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 | 914.4 | 609.6 | 619.3 | 466.9 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 | 1066.8 | 711.2 | 711.2 | 533.4 |
| 16 | 406.4 | 254.0 | 609.6 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 |
| 20 | 508.0 | 317.5 | 762.0 | 508.0 | 1524.0 | 1016.0 | 1016.0 | 762.0 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 | 1676.4 | 1117.6 | 1117.6 | 838.2 |
| 24 | 609.6 | 381.0 | 914.4 | 609.6 | 1828.8 | 1219.2 | 1219.2 | 914.4 |
Product Tags:
|
|

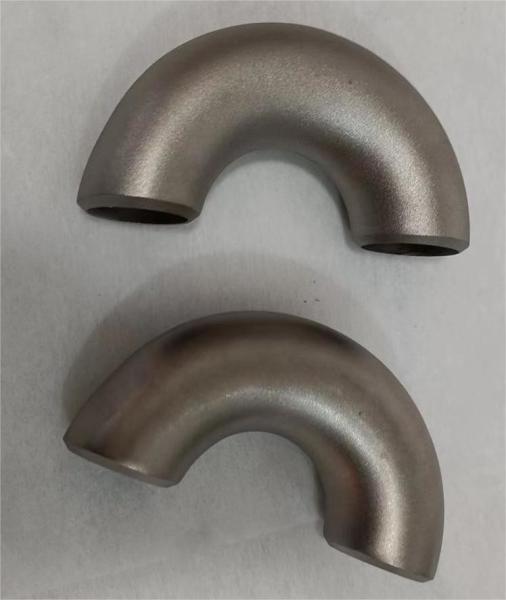

Customized Long Radius 180 Degree Titanium Elbow Gr3 Gr5 Gr7 Images
|
